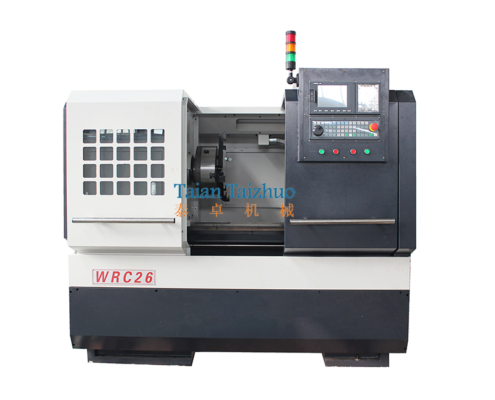

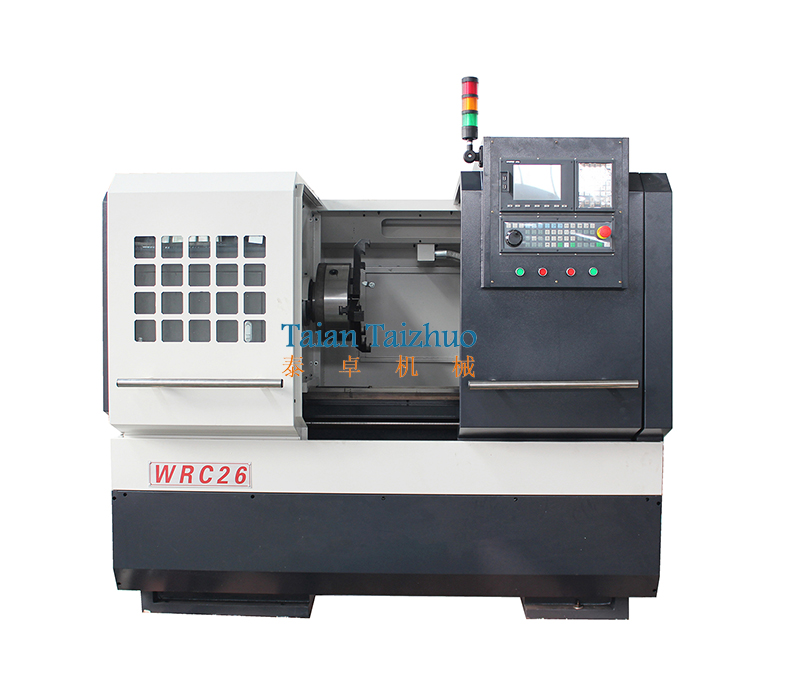

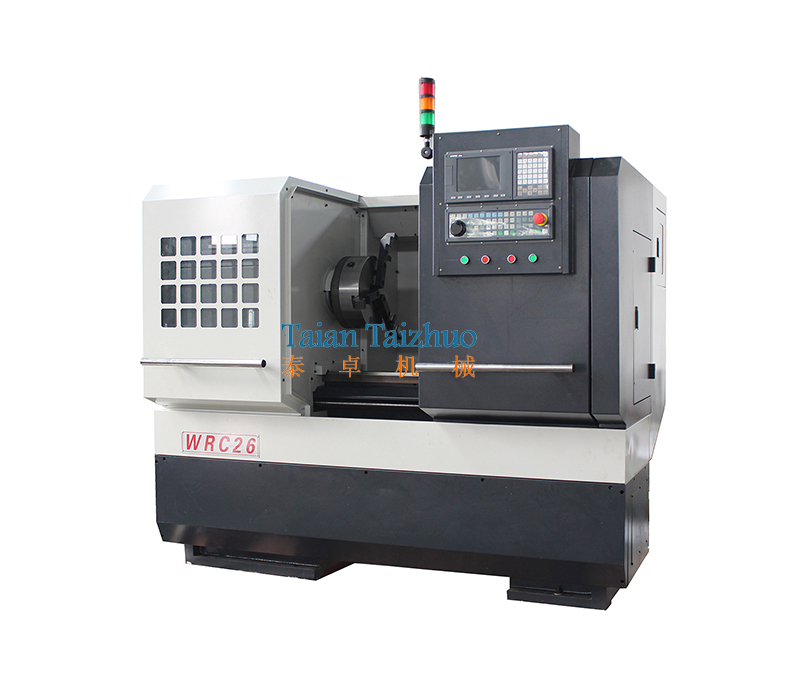

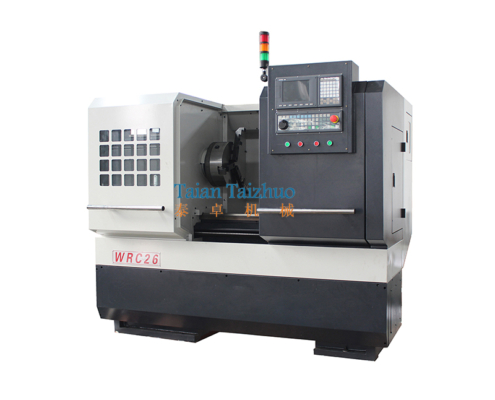

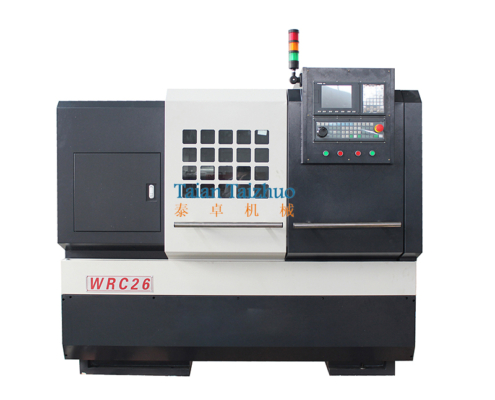

WRC26 Wheel Repair Equipment China Suppliers

Wheel Repair Equipment Datasheet

Model	WRC26
Max. swing over bed	700mm
Max. Diameter of alloy wheel	26inch
Chuck size	320mm
Range of Spindle speed（RPM）	50-2000rpm
Spindle bore（mm）	60mm
Stations of tool carrier	4 position tool post
Max. size of tool post	25x25mm
Main motor power	5.5kw
Machine size（LxWxH）（mm）	2300x1750x1950
Net weight	2600kg

Standard Configuration:

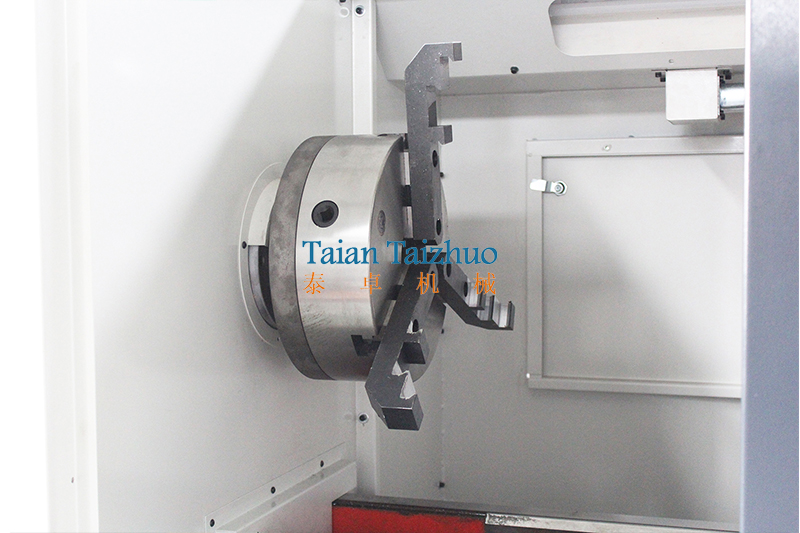

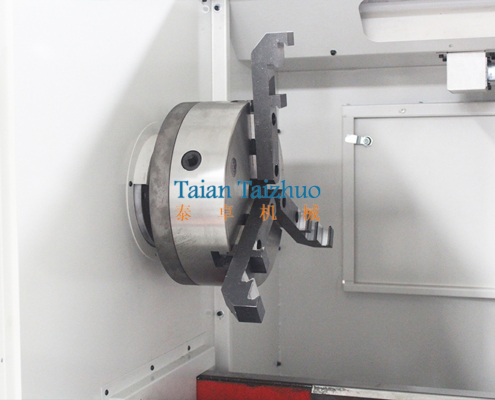

1-3-Jaw Chuck (With Special Soft Jaws);

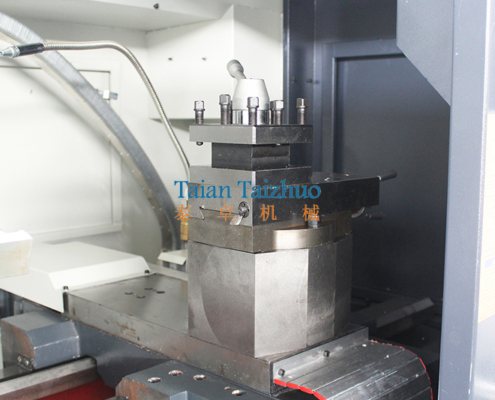

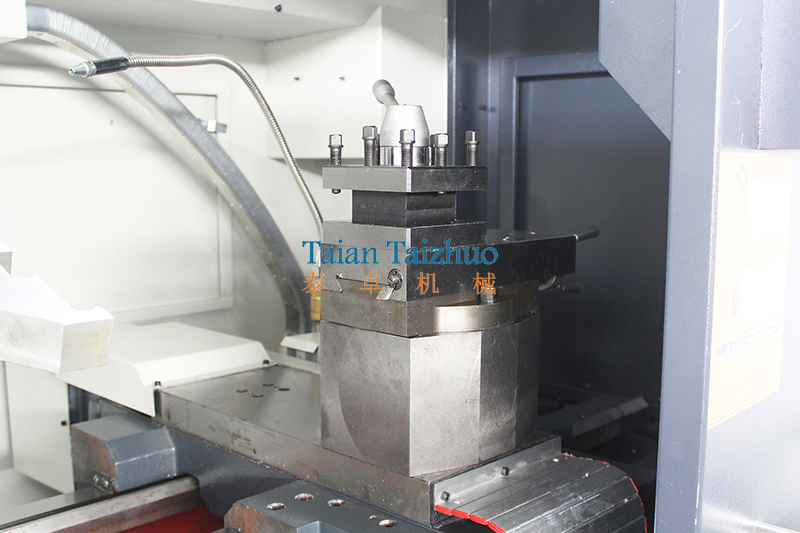

2-Manual Quick Change Tool post, 4-station turret;
3-Automatic lubrication system;
4-Turning cooling system;
5-With probing system (TP300 Pioneer Sensing Probe TP300);
6-Diamond Cutter 1 set;

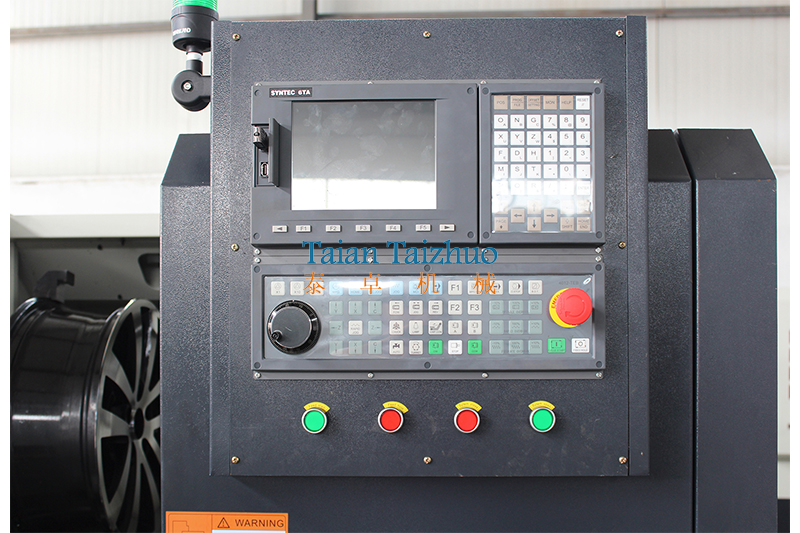

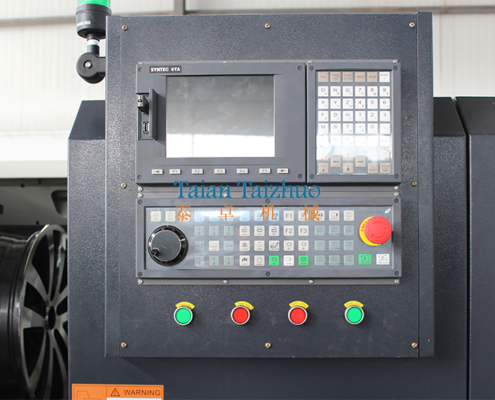

7-CNC controller SYNTEC;
8-Full Enclose (Security Guard Door);
9-Specific Digital Optimization Software;
10-Training Video CD;
11-Work Lighting System.

Optional Configuration:

1. CNC system: KND1000, Touch Screen, Centroid.
2. Custom made exclusive appearance.
