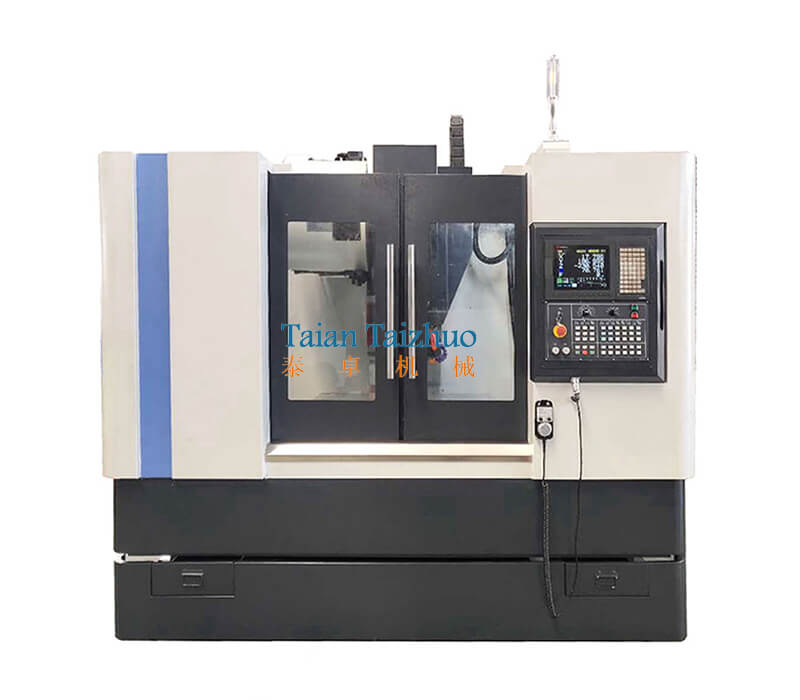

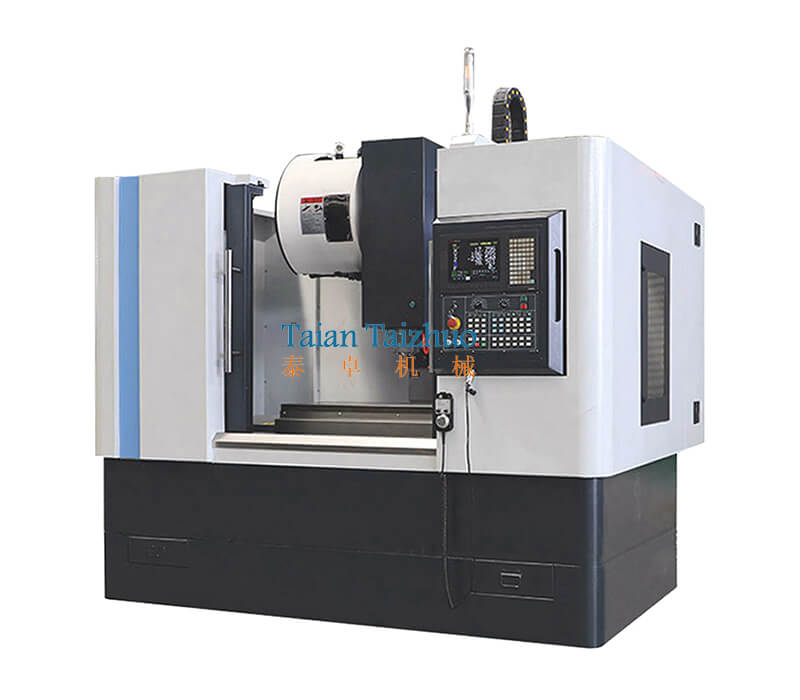

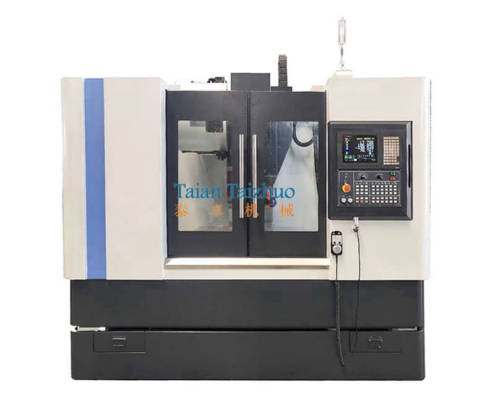

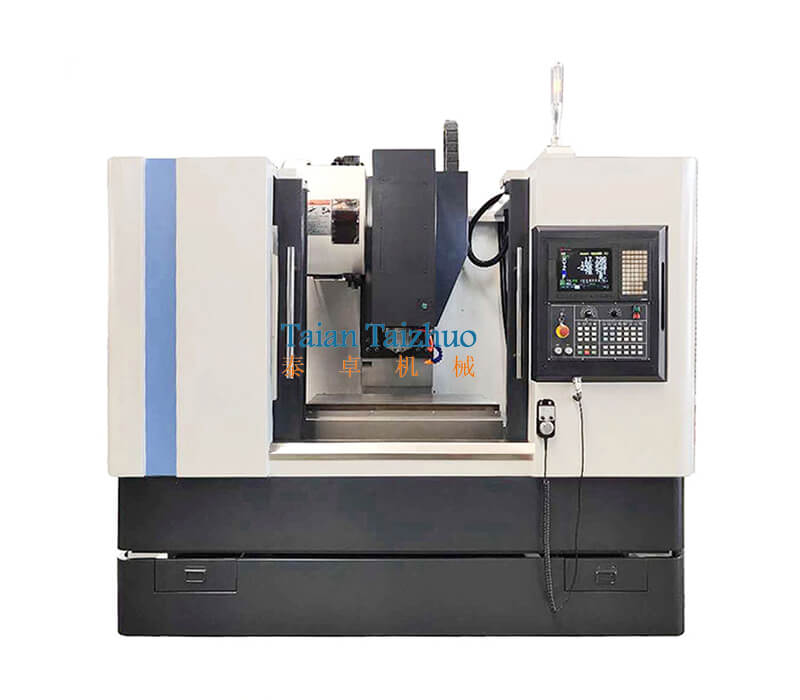

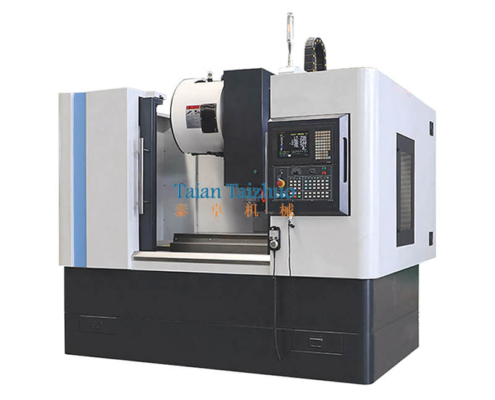

VMC850 CNC Machining Center China Suppliers
CNC Machining Center Datasheet
Item |
VMC850 |
|
Travel |
X axis |
800mm |
Y axis |
500mm |
|
Z axis |
500mm |
|
Spindle nose to table |
120-620mm |
|
Spindle nose to column |
550mm |
|
Feed |
Max. X rapid feed |
24m/min |
Max. Y rapid feed |
24m/min |
|
Max. Z rapid feed |
15m/min |
|
Cutting feed |
1-10000mm/min |
|
Torque |
10/10/15N.m |
|

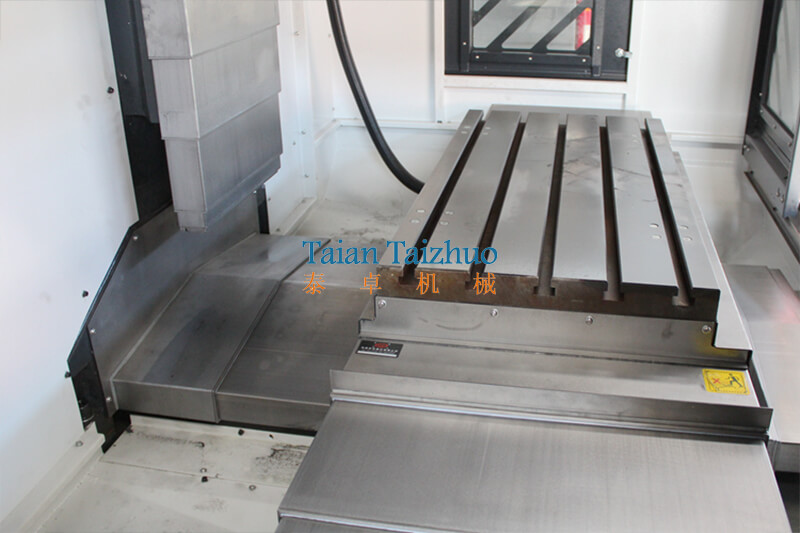

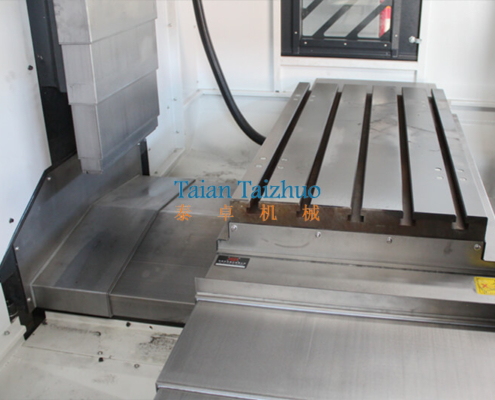

Table |
Table size |
1000x500mm |
Max. load |
500kg |
|
T slot |
5-18-90mm |
|

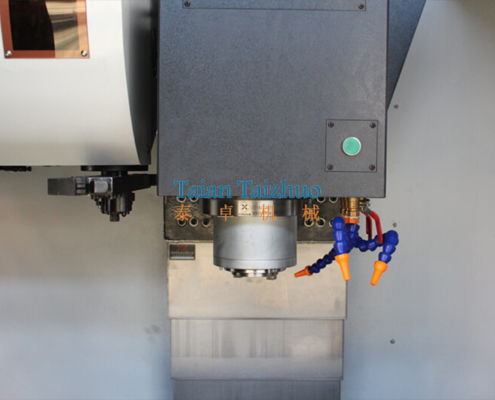

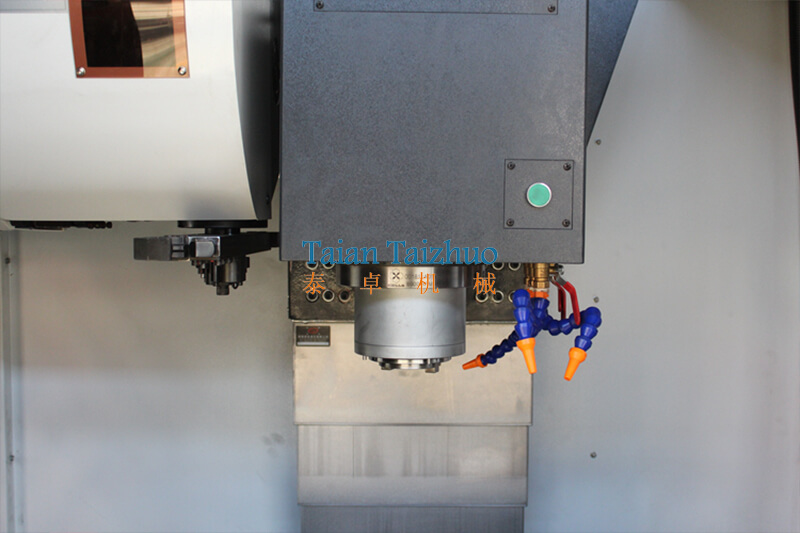

Spindle |
Type |
Belt |
Speed |
50-8000rpm |
|
Spindle bore |
120mm |
|
Spindle taper |
BT40 |
|
Pull stud |
MAS403-40BT-1 |
|
Spindle motor synchronizing wheel |
Taiwan |
|
Spindle belt |
Taiwan |
|
Main motor |
7.5/11kw |
|
Acuracy |
Positioning Accuracy (JIS) |
±0.015/300mm |
Repeatibility (JIS) |
±0.0075mm |
|
Machine |
Size |
2650×2300×2450mm |
Weight |
5200kg |
|
Standard configuration:

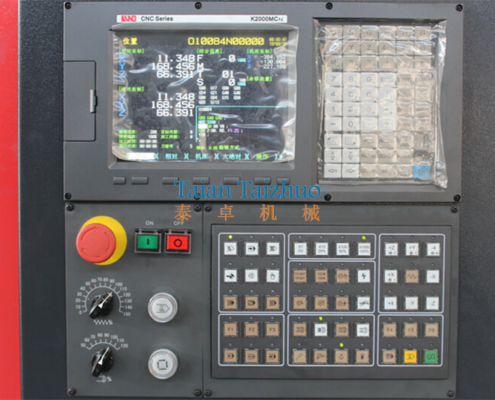

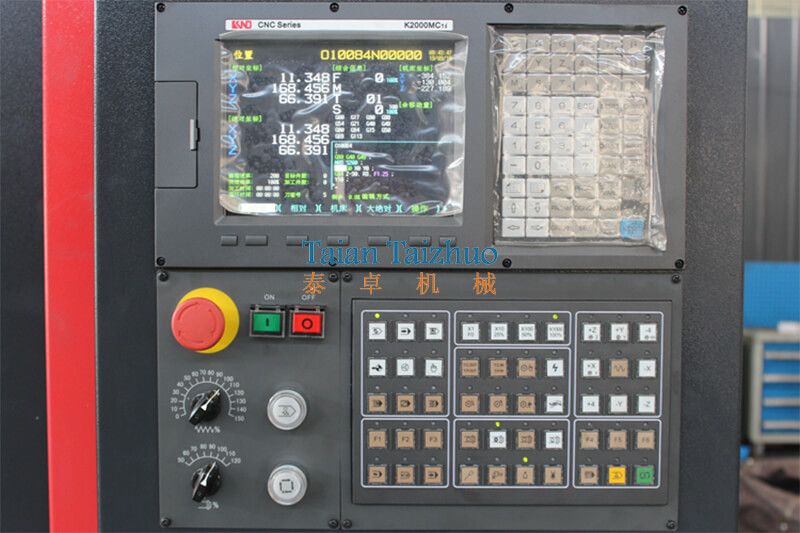

1. KND1000 CNC Controller.
2. Full Enclosure Machine Guard.

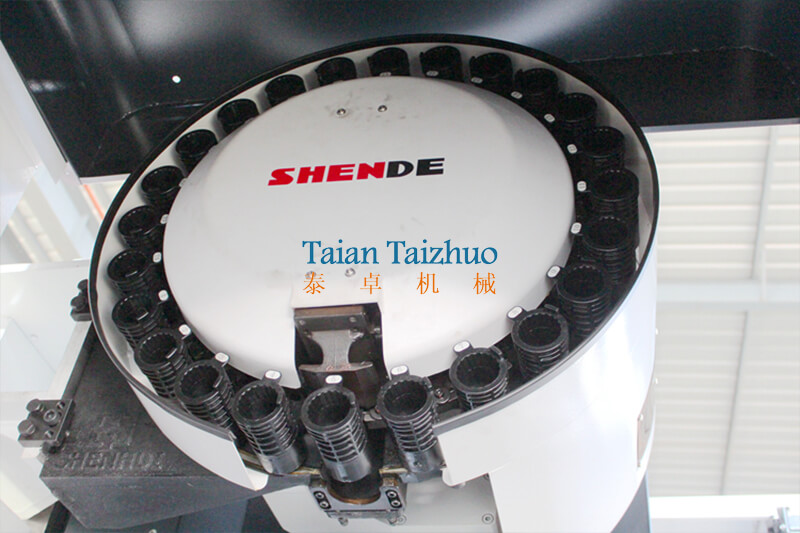

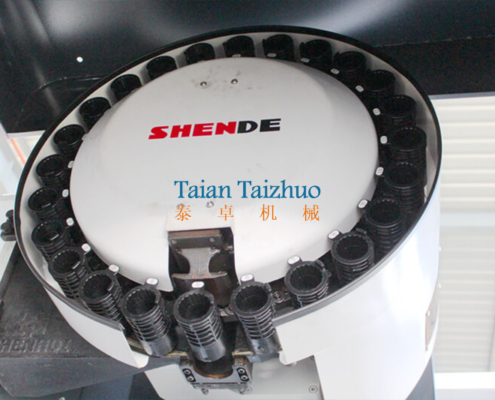

3. Taiwan Funnel Type Tool Changer.
4. Automatic Central Lubrication System With Alarm.
5. Taiwan Hiwin linear guideway.
6. Work Lamp
7. High precision ball screw.
Optional Configurations:
1. GSK KND Siemens Fanuc Mitusbishi.
2. Arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil coolant,center to water.
6. Renishaw probe for workpiece and tool.

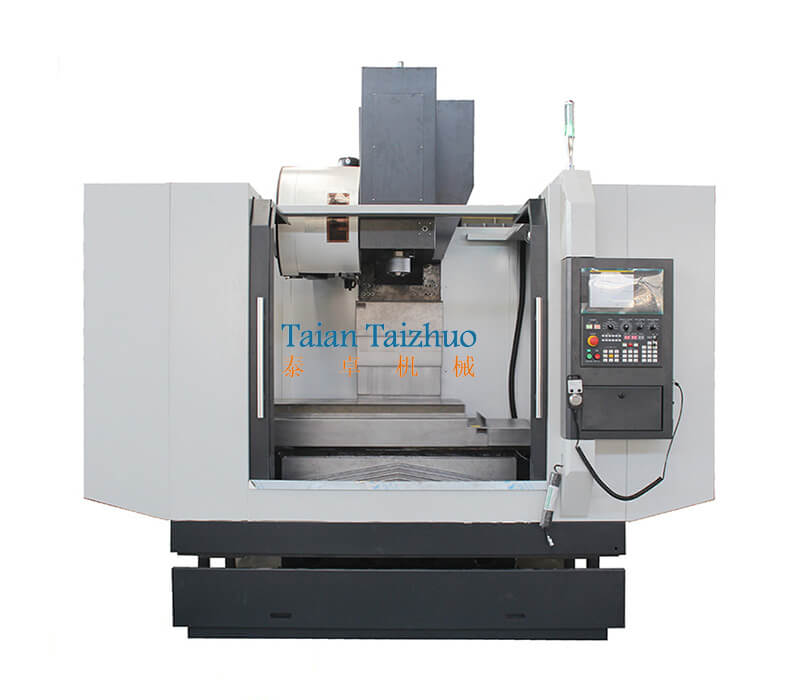

CNC Machining Center VMC1270 (1)

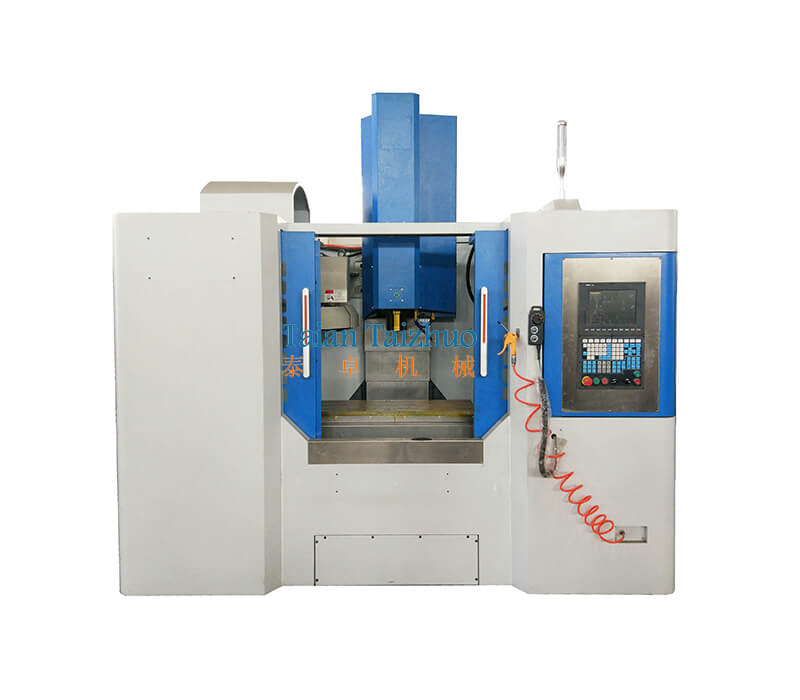

CNC Machining Center VMC1060 (2)
CNC Machining Center VMC650 (3)

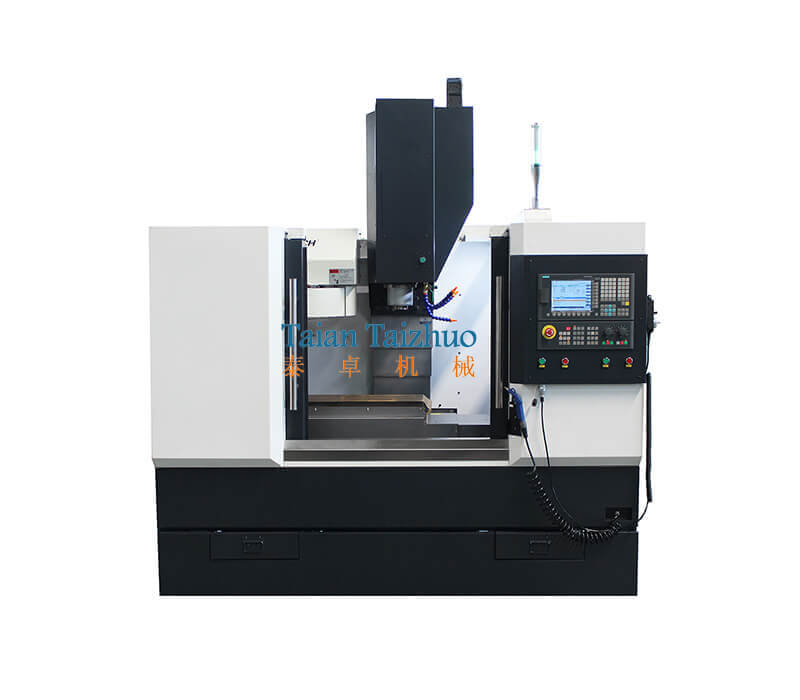

CNC Machining Center VMC500 (1)
