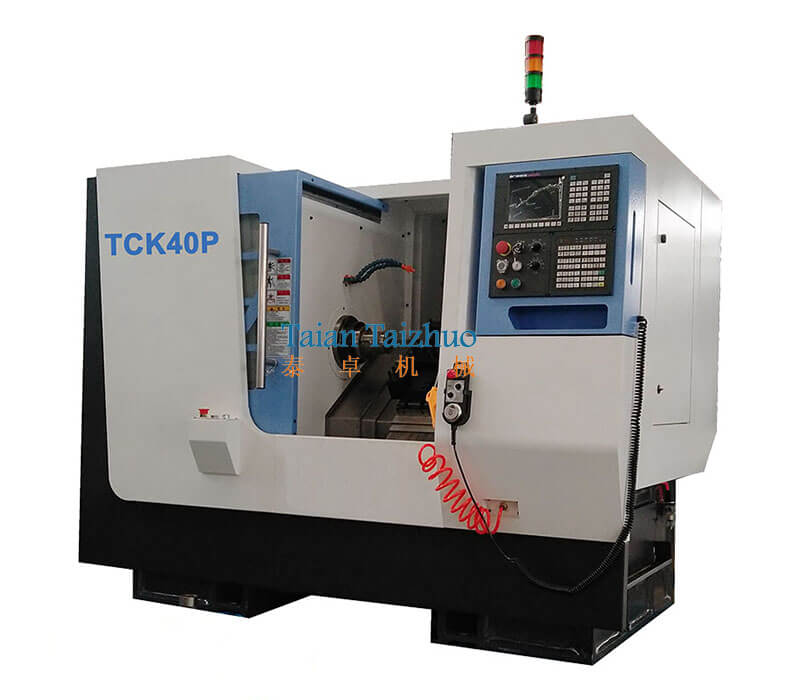

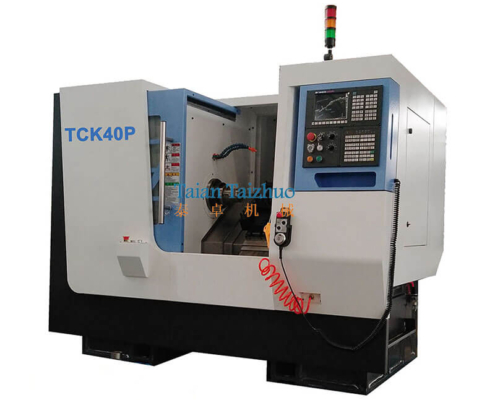

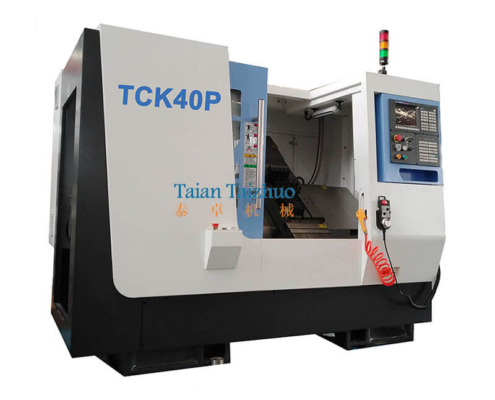

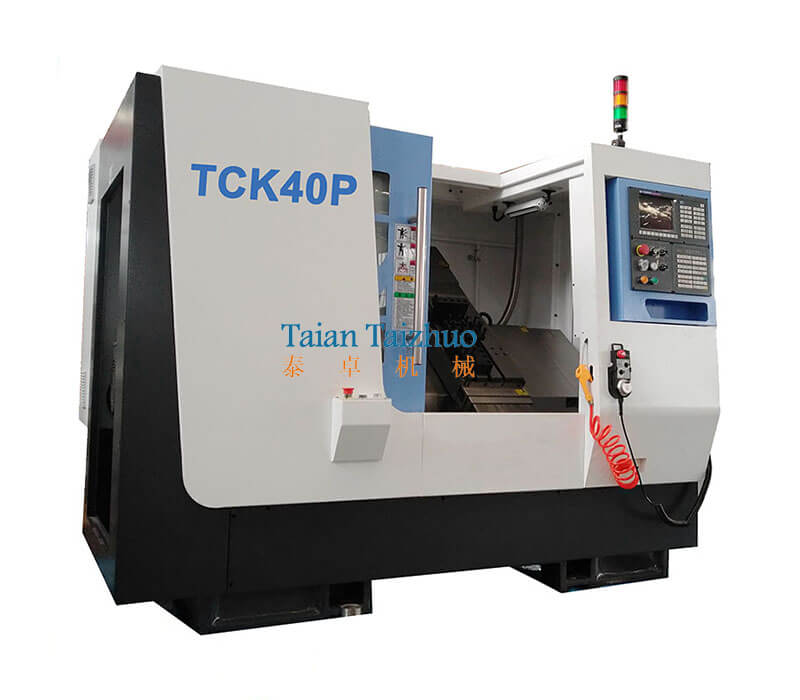

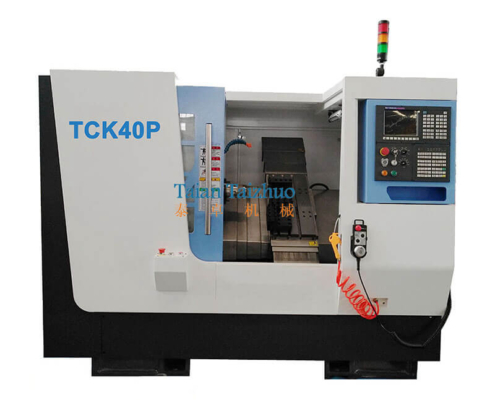

Slant Bed CNC Turning Center Datasheet
Specification/Model |
TCK40P |
|
Max. Swing diameter over bed |
320mm |
|
Max.Swing over carriage |
120mm |
|
Max.turning length |
280mm |
|
Carriage length |
700mm |
|
Distance between carriage of spindle |
60mm |
|
Spindle Nose |
A2-5 |
|
Spindle speed range |
50-4500r/min |
|
Hole through spindle |
48mm |
|
Hole through spindle |
40mm |
|
Spindle(C axis)Motor |
3.7KW |
|
Travel |
X axis |
300mm |
Z axis |
280mm |
|
Turret type |
Gang type tool post |
|
Rapid speed |
X axis |
2500mm/min |
Z axis |
2500mm/min |
|
X/Y/Z Positioning accuracy |
0.006mm |
|
X/Y/Z repositioning accuracy |
0.003mm |
|
Spindle(C Axis)dividing positioning accuracy |
0.02”(arc-second) |
|
Spindle(C Axis)dividing repositioning accuracy |
0.006”(arc-second) |
|
Weight |
1250kg |
|
Overall dimensions |
1780x1380x1550mm |
Standard configuration:

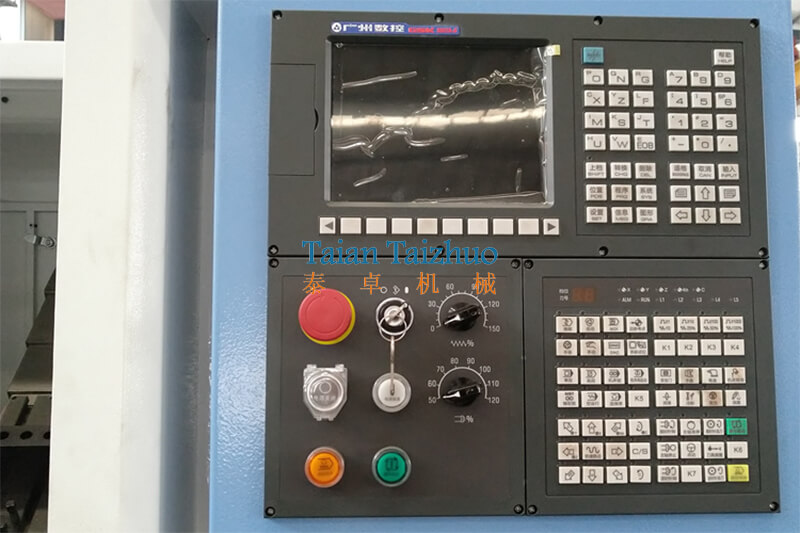

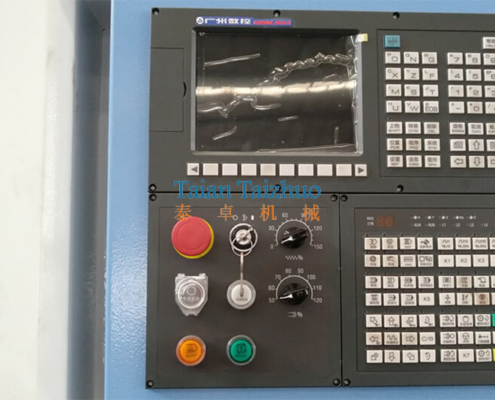

1) CNC controller: GSK980TC3.
2) Hydraulic collet with hydraulic station.

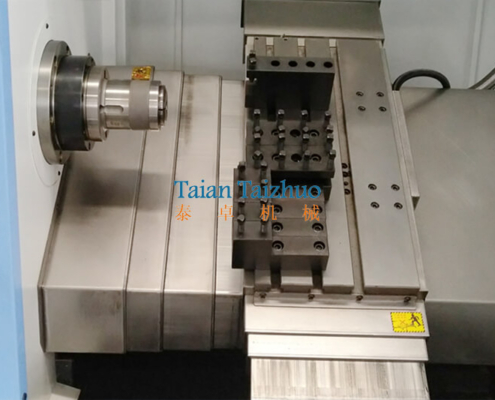

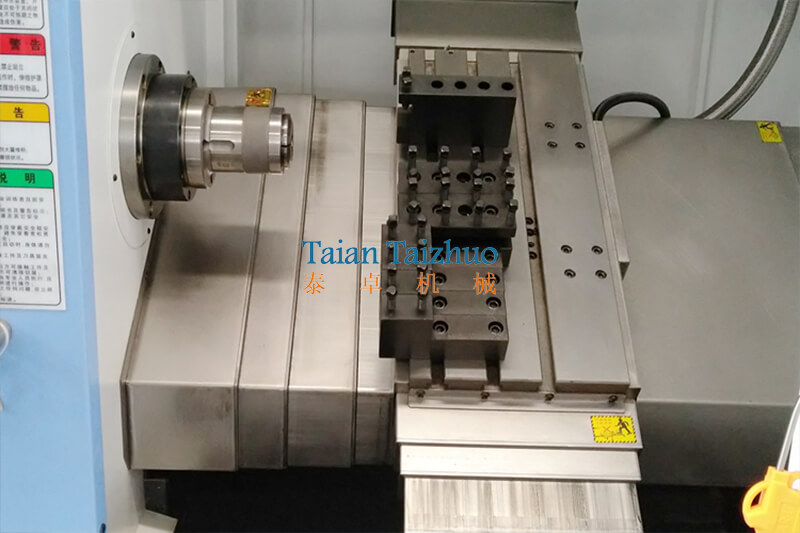

3) Gang type tool post.
4) Linear guide ways.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.
Optional Configurations:
1) GSK, Siemens, Fanuc, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck, Manual chuck.
3) Electric turret, Hydraulic turret, Power turret.
4) Automatic chip conveyor.
5) Y axis and power head.
6) Automatic bar feeder.
