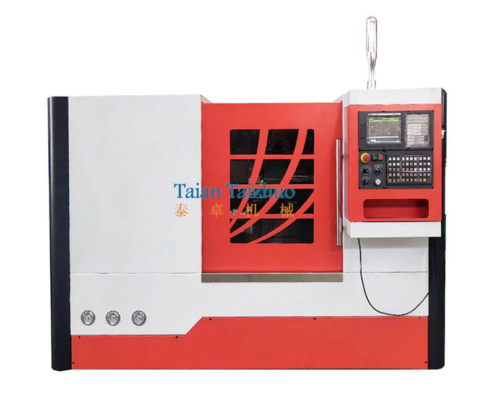

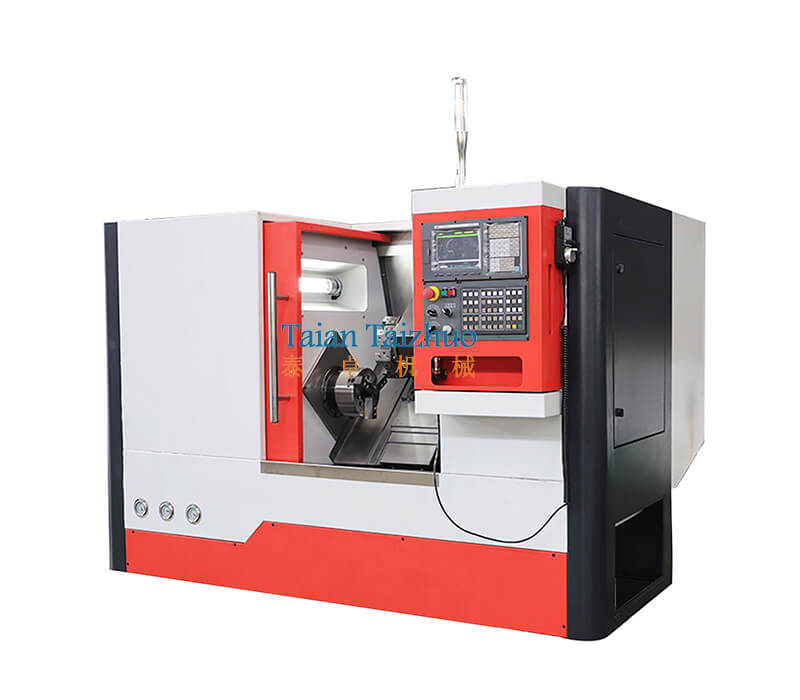

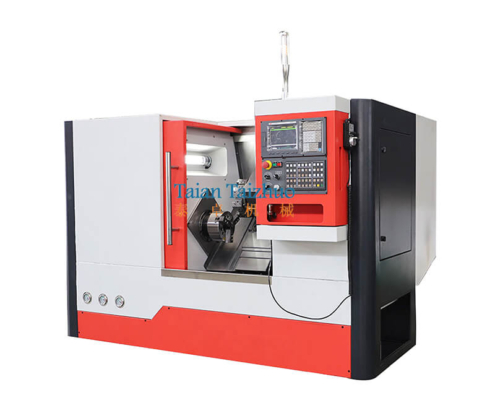

TCK40A Flat Bed CNC Lathe Machine China Suppliers
Slant Bed CNC Turning Center Datasheet
Item |
CK0640 |
Drawn pipe diameter |
40mm |
Max. swing diameter over slide |
100mm |
Max. workpiece length |
Collet 200mm/Chuck120mm |
Spindle head form |
A2-5 |
Spindle bore |
48mm |
Max. rotation diameter over bed |
250mm |
Lathe bed width |
260mm |
X/Z repeat positioning accuracy |
0.012/0.013mm |
X/Z maximum stroke |
260/240mm |
X/Z fast-moving feed |
4000/8000 mm/min |
Spindle speed range |
150-2500 r/min |
Main motor power |
3 kw |
Overall dimensions（LxWxH） |
1600x1000x1550 mm |
Net weight |
950 kg |
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional configuration:
1) CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2) Hydraulic chuck, Pneumatic chuck .
3) Hydraulic tailstock, Pneumatic tailstock.
4) 4/6-station electric turret.
5) Automatic bar feeder, Chip conveyor.
6) Spindle bore: 48/70/90mm.
